AMAT CVD Throttle Valve : Selection, Materials, and Maintenance Guide

1. Introduction

In semiconductor manufacturing, precision and reliability are everything. Among the many components in a Chemical Vapor Deposition (CVD) system, the throttle valve plays a critical role. Though often overlooked, this component directly affects process stability, chamber performance, and wafer yield. In AMAT CVD tools, the throttle valve regulates exhaust flow and maintains precise chamber pressure, ensuring repeatable results.

2. What Is a Throttle Valve in CVD Equipment?

In semiconductor fabrication, throttle valves are critical components within Chemical Vapor Deposition (CVD) chambers. Their primary function is to regulate the pressure inside the process chamber by adjusting the exhaust flow to the vacuum pump. Unlike simple on/off valves, a throttle valve operates with fine control, allowing precise modulation of chamber pressure during different process steps.

For example, during a deposition cycle, the chamber must maintain a stable vacuum level to ensure uniform film growth on wafers. If the pressure fluctuates, the deposited layer may suffer from non-uniform thickness, voids, or particle contamination. By actively controlling the exhaust, the throttle valve ensures that the chamber maintains the desired process conditions for optimal yield.

In short, the throttle valve is the “gatekeeper” between the process chamber and the vacuum pump, balancing gas input and exhaust flow to achieve highly stable conditions.

3. Key Functions of AMAT CVD Throttle Valves

AMAT (Applied Materials) has designed throttle valves specifically to support high-performance CVD processes. These valves are engineered with precise actuation mechanisms, robust materials, and reliable sealing to handle the demanding requirements of advanced semiconductor production.

The main functions include:

• 3.1 Maintaining Chamber Vacuum Levels
  By modulating exhaust flow, AMAT throttle valves allow chambers to operate at specific pressure setpoints, often in the range of milliTorr to a few Torr.

• 3.2 Regulating Gas Flow During Deposition
  Consistent gas distribution and exhaust balance are vital for film uniformity. Throttle valves ensure stable gas dynamics throughout the wafer surface.

• 3.3 Enhancing Wafer Yield by Reducing Contamination Risks
  A poorly sealed or unstable valve can introduce leaks and particles. AMAT valves minimize these risks through durable construction and compatible sealing materials.

• 3.4 Supporting Stable Plasma Generation
  In plasma-enhanced CVD (PECVD), chamber pressure stability is directly tied to plasma density. Throttle valves enable precise plasma control, which is essential for advanced node processing.

Overall, AMAT CVD throttle valves are not just mechanical components but critical enablers of process stability, wafer quality, and tool uptime.

4. Common AMAT CVD Throttle Valve Models

Applied Materials (AMAT) has developed a wide range of CVD throttle valves to match different chamber platforms and process requirements. Each model is optimized for specific applications such as PECVD, HDP CVD, or BWCVD systems. Understanding the distinctions between models helps fabs select the most suitable component for performance and cost efficiency.

Some of the most frequently used models include:

• 4.1 AMAT P5000 PECVD Throttle Valve Assembly (0010-76175)
  A widely used valve in PECVD chambers, designed for stable plasma processing and long service life.

• 4.2 AMAT Ultima HD Throttle Valve (0010-01369)
  Built for high-density plasma CVD chambers, with enhanced durability under aggressive plasma conditions.

• 4.3 AMAT BWCVD Throttle Valve (0010-09035)
  Supports multiple wafer sizes (100/125/150 mm) with strong sealing performance in BWCVD applications.

• 4.4 AMAT TEOS Downstream Throttle Valve (0010-09301)
  Designed for silicon oxide deposition processes using TEOS, optimized for clean exhaust management.

• 4.5 AMAT HDP CVD Throttle Valve Body (0020-18273)
  High-performance valve body used in HDP CVD chambers, supporting robust handling of high-density plasma environments.

Comparison of Common AMAT CVD Throttle Valve Models

These models illustrate the diversity of AMAT throttle valve designs. While some are platform-specific (such as P5000 PECVD), others are tailored for materials compatibility or wafer size flexibility. Selecting the right model depends on the chamber type, process chemistry, and desired balance of cost versus lifetime.

5. Material and Design Considerations

The performance of an AMAT CVD throttle valve is not only determined by its mechanical design but also by the materials used in its body and sealing system. Since CVD processes involve high temperatures, corrosive gases, and plasma environments, material selection directly affects valve lifetime, stability, and contamination control.

Valve Body Materials

• Aluminum (Anodized/Coated) – Lightweight and common in standard throttle valves, but may require protective coatings to resist plasma erosion.

• Stainless Steel – Provides durability and resistance to corrosive gases, often used in heavy-duty applications.

• Special Coatings (e.g., Y₂O₃, Al₂O₃) – Improve resistance against plasma damage and particle generation.

Seal and Plug Materials

The sealing material is critical because it determines chemical resistance, temperature tolerance, and contamination levels. Below is a comparison of the most common options used in AMAT throttle valves:

Comparison of Seal Materials in AMAT CVD Throttle Valves

Key Insights

• FKM is suitable for non-critical positions but not recommended inside aggressive plasma chambers.

• FFKM is the most reliable choice for critical sealing areas in AMAT CVD throttle valves, despite higher cost.

• Teflon plugs provide excellent chemical inertness but require mechanical robustness to avoid deformation.

• Perfluoroelastomer alternatives offer a balance of cost and performance, often used in fabs looking to reduce OPEX without sacrificing too much reliability.

In practice, fabs often adopt a hybrid strategy: using FFKM in critical chamber positions and more economical options in secondary areas. This approach balances performance with budget considerations.

6. Maintenance and Replacement Best Practices

Like all components in a semiconductor process tool, AMAT CVD throttle valves require regular inspection and preventive maintenance to ensure stable operation. Since these valves are directly exposed to vacuum, plasma, and reactive gases, they are subject to wear, particle generation, and seal degradation over time.

Proactive maintenance not only extends the lifetime of the throttle valve itself but also reduces unplanned downtime and contamination-related yield loss.

Best Practices for Throttle Valve Maintenance

1. 6.1 Scheduled Inspections

   • Inspect valves during routine PM (preventive maintenance) cycles.

   • Check for signs of wear, discoloration, or coating erosion on the valve body.

2. 6.2 Seal Monitoring and Replacement

   • Replace O-rings and sealing materials proactively, even before failure.

   • Use OEM-specified or semiconductor-grade alternatives to prevent leaks.

3. 6.3 Surface Cleaning

   • Use appropriate cleaning agents to remove deposition buildup.

   • Avoid abrasive methods that could damage coatings or sealing surfaces.

4. 6.4 Batch Replacement Strategy

   • Replace seals and related components in groups rather than one-by-one.

   • This reduces the risk of partial failure and minimizes tool downtime.

5. 6.5 Proper Storage of Spare Parts

   • Store O-rings and seals in a cool, dry, and dark environment.

   • Prevent exposure to UV light or ozone, which accelerates material degradation.

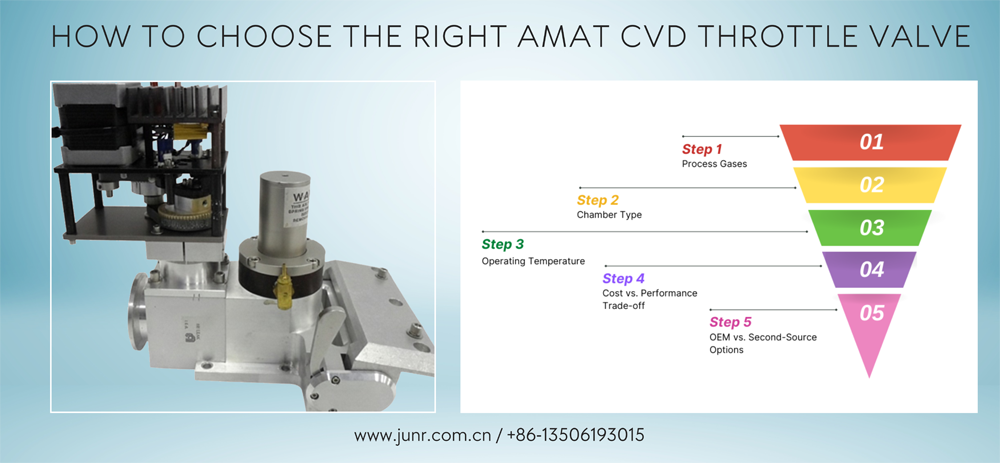

7. How to Choose the Right AMAT CVD Throttle Valve

Selecting the correct AMAT CVD throttle valve is not just about matching a part number—it requires evaluating the process environment, tool platform, and cost-performance balance. A mismatched valve can lead to frequent maintenance, contamination issues, or excessive operational costs.

Key Factors to Consider

1. 7.1 Process Gases

   • Highly corrosive gases (e.g., Cl₂, NF₃, CF₄) require FFKM seals and coated valve bodies.

   • Less aggressive processes may allow more cost-effective elastomer alternatives.

2. 7.2 Chamber Type

   • PECVD systems demand precise pressure control for stable plasma.

   • HDP CVD chambers require durable valve bodies to withstand high-density plasma.

   • BWCVD systems may need valves compatible with multiple wafer sizes.

3. 7.3 Operating Temperature

   • Valves in high-temperature environments (>250 °C) must be equipped with FFKM or Teflon plugs for reliability.

4. 7.4 Cost vs. Performance Trade-off

   • FFKM-equipped valves are more expensive but deliver longer service life and less downtime.

   • Secondary-source or hybrid material options can lower costs while maintaining acceptable performance.

5. 7.5 OEM vs. Second-Source Options

   • OEM parts (Applied Materials original) ensure full compatibility and proven reliability.

   • Second-source parts may reduce costs but should be verified for material and dimensional equivalence.

8. Conclusion

AMAT CVD throttle valves may seem like small components compared to the complexity of a deposition system, but their impact on process stability, wafer yield, and overall tool uptime is significant. By precisely regulating chamber pressure and exhaust flow, they act as a safeguard for consistent and repeatable CVD performance.

Choosing the right throttle valve requires a careful balance between process requirements, material durability, and cost efficiency. For critical chamber positions exposed to harsh plasma and corrosive gases, FFKM-equipped OEM valves are usually the best choice. For non-critical areas, fabs can consider more economical materials or qualified second-source alternatives to optimize their operational budget.

Ultimately, a proactive strategy—combining the right part selection with preventive maintenance—ensures that fabs can maximize throughput, minimize downtime, and achieve a lower total cost of ownership.
