1. Introduction to the TSK UF2000 Prober
The TSK UF2000 is one of the flagship wafer probers developed by Tokyo Seimitsu (now ACCRETECH), a company recognized worldwide for its precision metrology and semiconductor testing solutions. Positioned as a 200 mm-class prober, the UF2000 is designed to handle both production wafer testing and engineering applications, making it suitable for IC manufacturers, research institutions, and specialty device fabs.
When it was introduced, the UF2000 bridged a critical gap between high-accuracy manual probers and fully automated high-throughput systems. Even today, it remains a reliable choice in the secondary equipment market, particularly for fabs that value stability, accuracy, and cost-effectiveness.
2. Core Features of the TSK UF2000
The UF2000 integrates several advanced features that ensure stable performance across a wide range of wafer testing applications.
Key Features at a Glance:
-
Wafer Compatibility: Supports wafers up to 200 mm in diameter.
-
Precision Alignment: High-accuracy optical alignment system ensures consistent contact between probe needles and pads.
-
Automation: Automated wafer handling and chuck movement reduce operator intervention.
-
Flexible Software: Intuitive user interface for recipe management and repeatable test routines.
-
Throughput: Balanced performance designed to support both engineering and mid-volume production.
-
Robust Design: Built to handle continuous use in demanding fab environments.
These features made the UF2000 an attractive investment for fabs requiring versatility and long-term reliability.
3. Technical Specifications of the TSK UF2000
The following table summarizes the main technical parameters of the UF2000:
| Specification | Details |
|---|---|
| Wafer Size Support | Up to 200 mm |
| Chuck Options | Thermal chucks (hot/cold) available; supports various device testing needs |
| Alignment Accuracy | ±1 µm (typical), ensuring reliable pad-to-needle contact |
| Repeatability | High stability across long test cycles |
| Probing Force | Adjustable, compatible with different probe cards |
| Throughput | Mid-range UPH (Units per Hour), suitable for R&D and production |
| Software Control | Recipe-driven, user-friendly GUI |
| Maintenance Cycle | Designed for low downtime, predictable preventive maintenance |
Interpretation of the Specs
-
The 200 mm wafer compatibility makes it ideal for fabs that are still producing at sub-200 mm nodes or running specialty devices.
-
Alignment precision of ±1 µm ensures yield consistency, particularly important for fine-pitch IC devices.
-
With thermal chuck options, the UF2000 can support temperature-dependent electrical tests, which are increasingly relevant in power devices and MEMS applications.

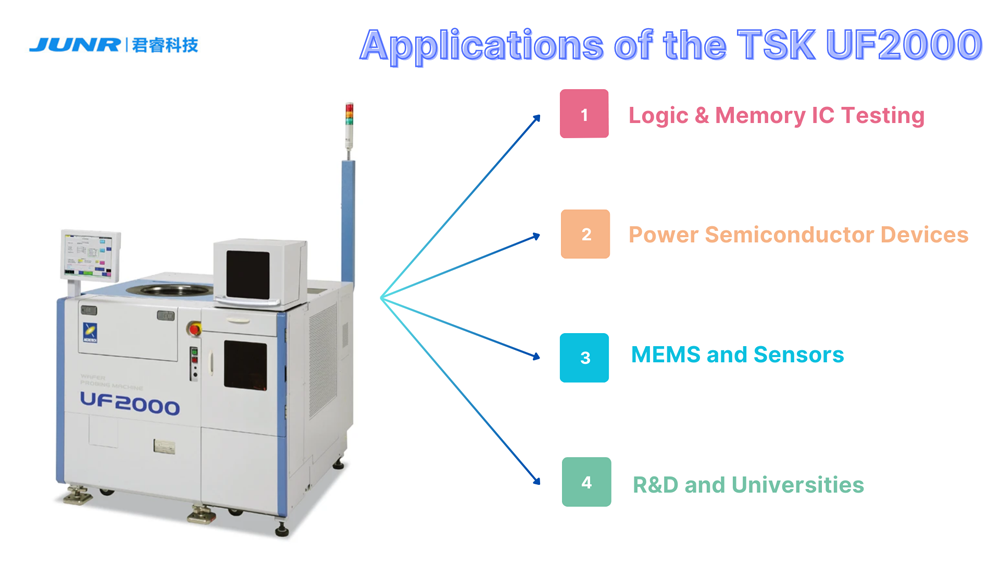

4. Applications of the TSK UF2000
The TSK UF2000 prober is widely used across different sectors of the semiconductor industry due to its flexibility and accuracy. Its ability to test a broad range of devices makes it valuable not only for production fabs, but also for R&D environments.
Key Application Areas
-
Logic & Memory IC Testing
-
Accurate probing for device characterization and wafer-level burn-in.
-
Suitable for DRAM, Flash, and ASIC development.
-
-
Power Semiconductor Devices
-
Probing of discrete components and high-voltage devices.
-
Supports thermal chucks for temperature-dependent testing.
-
-
MEMS and Sensors
-
Capable of handling delicate MEMS wafers, including accelerometers and pressure sensors.
-
-
R&D and Universities
-
A popular choice for research labs developing new device structures or testing novel materials.
-
The versatility of the UF2000 allows it to serve as a multi-purpose tool for fabs that need to cover both engineering test wafers and limited production volumes.
5. Advantages of the TSK UF2000
Even though newer prober models have entered the market, the UF2000 continues to attract fabs because of its reliability, cost-performance ratio, and ease of operation.
Advantages at a Glance
-
1. Proven Reliability
-
Installed base across global fabs with strong long-term performance records.
-
Designed to operate under continuous use with minimal downtime.
-
-
2. Flexibility
-
Supports multiple device types, from logic ICs to MEMS.
-
Adaptable probing force and software recipes allow easy reconfiguration.
-
-
3. User-Friendly Design
-
Simplified software interface for recipe setup and monitoring.
-
Ideal for both production engineers and R&D operators.
-
-
4. Cost Efficiency
-
Much lower capital investment compared to newer 300 mm probers.
-
Competitive operating costs with wide availability of spare parts.
-
-
5. Integration Capability
-
Compatible with a range of test systems, including custom ATE (Automated Test Equipment) setups.
-
6. Refurbished TSK UF2000: A Smart Investment
For many fabs and research institutions, investing in a refurbished UF2000 provides the best balance between performance and cost. The secondary market offers well-maintained and upgraded systems that can extend the lifetime of this proven platform.
Why Choose a Refurbished UF2000?
-
Lower Total Cost of Ownership (TCO): Significant savings compared to purchasing newer equipment.
-
Proven Technology: Field-tested reliability ensures stable operation.
-
Spare Parts Availability: Easy sourcing of replacement parts and consumables.
-
Sustainability: Extending the lifecycle of equipment reduces e-waste and contributes to greener manufacturing.
Market Availability Example
| Model | Wafer Size | Condition | Typical Use Case |
|---|---|---|---|
| TSK UF2000 | 200 mm | Refurbished / As-Is | General IC and MEMS wafer probing |
| TSK UF2000A | 200 mm | Refurbished / Upgraded | Enhanced alignment accuracy, R&D focus |
7. Why Choose Us for TSK UF2000 Solutions
Selecting the right partner for refurbished semiconductor equipment is as critical as choosing the equipment itself. At Wuxi JunR Technology Co., Ltd. , we offer more than just hardware — we provide complete solutions for fabs and research institutions.
Our Strengths
-
Extensive Inventory
-
Access to multiple TSK UF2000 units, ready for shipment or refurbishment.
-
-
Professional Refurbishment
-
Every machine is inspected, calibrated, and tested by experienced engineers to ensure compliance with semiconductor fab standards.
-
-
Technical Expertise
-
Our team includes semiconductor equipment specialists who provide consulting on process requirements, probe card compatibility, and test optimization.
-
-
After-Sales Support
-
Continuous access to spare parts, preventive maintenance services, and troubleshooting support.
-
-
Global Reach
-
Trusted by international clients, from integrated device manufacturers (IDMs) to academic research labs.
-
By partnering with us, customers ensure not only a refurbished UF2000 prober, but also long-term reliability and dedicated support.
8. Conclusion
The TSK UF2000 prober remains a highly respected solution in wafer-level testing, balancing precision, flexibility, and affordability. For fabs working on 200 mm wafers or research institutions developing advanced devices, the UF2000 continues to be a smart and cost-effective choice.
While newer models exist, the refurbished UF2000 holds its ground as a proven workhorse. Its versatility across logic, memory, MEMS, and power devices ensures it will continue to serve in production and engineering applications for years to come.
At Wuxi JunR Technology Co., Ltd., we are proud to support our customers with refurbished TSK UF2000 systems, along with spare parts, technical expertise, and full service support.
If your fab or lab is considering a TSK UF2000 prober, contact us today for availability and consultation.
