Introduction
High-precision measurement lies at the heart of modern manufacturing, semiconductor production, and advanced scientific research. As motion systems reach nanometer and sub-nanometer resolution, traditional sensors are no longer sufficient to verify position, velocity, and straightness with the required accuracy.
ZYGO laser interferometers have become a reference standard in optical metrology, providing traceable, non-contact, and ultra-high-resolution measurement for demanding applications. Their combination of optical stability, system flexibility, and long-term reliability has made them widely adopted in semiconductor tools, precision stages, and calibration environments worldwide.
This article provides a complete and practical explanation of ZYGO laser interferometers, covering how they work, system architectures, application scenarios, and key considerations for integration and long-term operation.
What Are ZYGO Laser Interferometers?
ZYGO laser interferometers are optical measurement systems that use the principle of laser interferometry to measure displacement, position, straightness, flatness, and angular motion with extremely high accuracy.
At their core, these systems compare the phase difference between a reference laser beam and a measurement beam that has traveled along a defined path. Any change in path length—caused by motion or deformation—results in a measurable interference signal.
ZYGO systems are best known for their use of heterodyne laser interferometry, which enables:
● Directional motion detection
● High immunity to intensity fluctuations
● Excellent noise rejection
● Stable long-term scale accuracy
Rather than being standalone devices, ZYGO laser interferometers are typically deployed as modular measurement systems, consisting of a laser source, interferometer optics, receivers, and signal processing electronics.
Core Measurement Principle: Heterodyne Laser Interferometry
How It Works
In a ZYGO heterodyne interferometer, the laser source generates two closely spaced optical frequencies with orthogonal polarizations. When these frequencies interfere after traveling different optical paths, they produce a beat frequency that can be precisely measured.
Motion of the measured object causes a phase shift in the interference signal, which is directly proportional to displacement.
Key Advantages
● Nanometer and sub-nanometer resolution
● Directional sensitivity (forward and reverse motion)
● High signal stability over long distances
● Excellent resistance to vibration and optical noise
These characteristics make ZYGO laser interferometers particularly well-suited for industrial environments where stability and repeatability are critical.

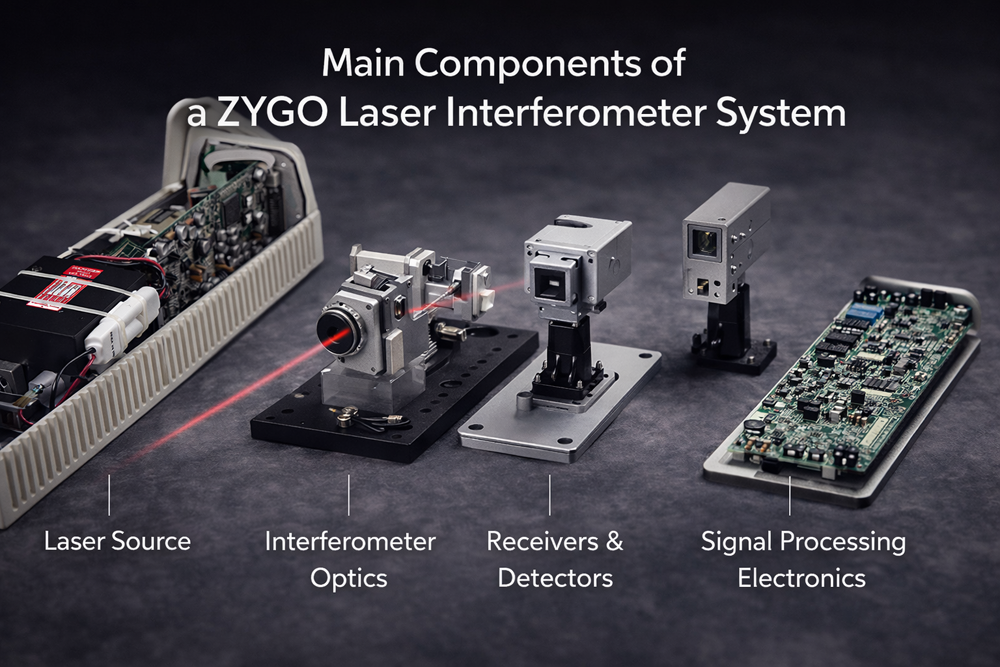

Main Components of a ZYGO Laser Interferometer System
A complete ZYGO laser interferometer system typically includes the following elements:
1. Laser Source
The stabilized laser (commonly He-Ne heterodyne) defines the measurement scale and frequency stability of the system.
2. Interferometer Optics
Optical modules that split, redirect, and recombine laser beams to measure:
● Linear displacement
● Angular motion
● Straightness and flatness
● Multi-axis positioning
3. Receivers and Detectors
Photodetectors convert optical interference signals into electrical signals for processing.
4. Signal Processing Electronics
These modules calculate displacement, velocity, and error signals in real time and interface with control systems.
Types of ZYGO Laser Interferometers
ZYGO offers a range of interferometer configurations designed for different measurement tasks:
Linear Displacement Interferometers
Used for high-accuracy position feedback in linear stages and wafer positioning systems.
Angular and Straightness Interferometers
Measure pitch, yaw, roll, and straightness errors in precision motion platforms.
Multi-Axis Measurement Systems
Enable simultaneous monitoring of multiple degrees of freedom, commonly used in lithography tools and precision scanners.
Surface and Optical Interferometers
Used for flatness, surface figure, and optical component inspection in metrology laboratories.
Typical Applications of ZYGO Laser Interferometers
Semiconductor Manufacturing
● Wafer stage positioning
● Lithography alignment and scanning
● Overlay and critical dimension control
● Metrology and inspection tools
Even nanometer-scale positioning errors can impact yield, making interferometric feedback essential.
Precision Motion Control
● Air-bearing stages
● Linear motor platforms
● Multi-axis positioning systems
● Precision assembly equipment
ZYGO systems provide real-time feedback for closed-loop control.
Metrology and Calibration
● Coordinate measurement systems
● Machine tool calibration
● National and industrial standards labs
● Research instrumentation
Advanced Industrial and Scientific Applications
● Optical alignment systems
● Flat panel display manufacturing
● Aerospace and precision engineering
● Research and development facilities
Accuracy, Stability, and Environmental Considerations
While ZYGO laser interferometers offer exceptional intrinsic accuracy, system performance depends on several external factors:
● Thermal stability of the environment
● Air refractive index compensation
● Mechanical alignment and mounting
● Vibration control
Proper system design and calibration are essential to fully realize the interferometer’s performance capabilities.
Conclusion
ZYGO laser interferometers represent one of the most established and trusted technologies for ultra-precision measurement. Their ability to deliver traceable, non-contact, and highly stable measurement data has made them indispensable in semiconductor manufacturing, precision motion control, and advanced metrology applications.
Understanding their operating principles, system architecture, and integration considerations allows engineers and equipment owners to maintain performance, extend system life, and minimize operational risk.
As a supplier with extensive experience in ZYGO laser interferometer systems, including lasers, optics, and supporting components, we focus on providing technically qualified solutions and practical system knowledge to support customers throughout the full equipment lifecycle—helping ensure that precision measurement systems continue to perform as intended in demanding industrial environments.
