Introduction
TSK UF200R probing machines are fully automated wafer probing systems designed for wafer-level electrical testing. The platform is associated with Tokyo Seimitsu/ACCRETECH's TSK probing technology and is designed to handle wafers from approximately 120 mm to 200 mm, including common 5-inch, 6-inch, and 8-inch wafer applications.
The UF200R is particularly relevant to semiconductor manufacturers, OSATs, laboratories, and equipment service companies that require automated wafer handling, precision alignment, repeatable probing, and continuous operation.
Unlike a manual probe station, an automatic wafer prober integrates wafer loading, alignment, X-Y-Z movement, probe contact, testing coordination, and wafer unloading into one automated platform. This makes the system suitable for production testing as well as engineering and specialized wafer-level applications.
What Is the TSK UF200R?
The TSK UF200R is an automated wafer prober developed for wafer transfer and probing applications. It is designed to provide high-speed wafer handling and precise positioning while maintaining stable probe contact.
The current ACCRETECH product information identifies the UF200R as an automated 200 mm wafer prober supporting 120 mm, 150 mm, and 200 mm wafers. Its motion system provides X-Y speeds of up to 300 mm/s, Z-axis speeds of up to 30 mm/s, and a rotation range of ±5°.
The system combines several critical subsystems:
- Automated wafer handling
- Precision X-Y-Z motion stages
- Optical wafer alignment
- Vacuum wafer chuck
- Probe card interface
- Automated wafer transfer
- Prober control software
- Optional temperature-control and application-specific functions
Its modular architecture also allows additional functions to be configured for specialized wafer testing requirements.

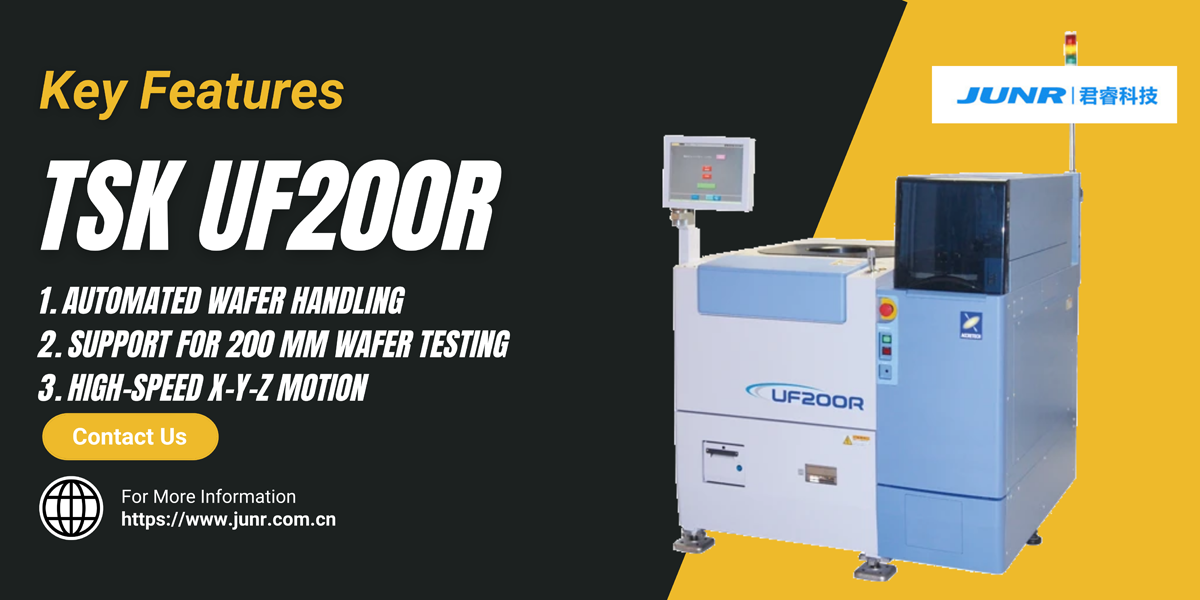

Key Features of TSK UF200R Probing Machines
1. Automated Wafer Handling
One of the primary advantages of the UF200R is automated wafer transfer.
A robotic handling system transfers wafers between the cassette and probing position, reducing manual intervention and improving production consistency. The platform also supports backside holding for applications involving sensitive wafer structures.
For production environments, automated handling is important because unnecessary manual wafer movement can increase the risk of contamination, wafer damage, and operator-dependent positioning errors.
2. Support for 200 mm Wafer Testing
The UF200R is designed around the 200 mm wafer-class market and supports wafers up to 200 mm in diameter. The platform is also documented for 120 mm and 150 mm wafers.
This makes the UF200R useful for applications involving:
- 5-inch wafers
- 6-inch wafers
- 8-inch wafers
- MEMS wafers
- Specialty semiconductor devices
- Engineering wafers
- Production wafer sort
The exact wafer compatibility and available options should always be verified for the individual machine because configuration can vary between units.
3. High-Speed X-Y-Z Motion
Precise movement is fundamental to wafer probing.
The UF200R provides X-Y motion speeds of up to 300 mm/s and Z-axis motion of up to 30 mm/s, according to ACCRETECH's published specifications.
The motion system must coordinate several operations:
- Wafer positioning
- Alignment
- Die-to-probe positioning
- Probe touchdown
- Die-to-die movement
- Wafer mapping
- Wafer unloading
High-speed movement is particularly important when testing wafers containing a large number of dies because even small reductions in indexing time can affect overall throughput.
Optical Alignment and Probing Accuracy
Accurate wafer alignment is essential for reliable CP testing.
The UF200R uses an optical alignment system to identify wafer reference features and establish the relationship between wafer coordinates and probe coordinates. The platform is also described as supporting automatic probing and probe/wafer alignment functions.
In practical production environments, alignment performance depends on more than the camera itself. Engineers should also consider:
- Camera condition
- Optical cleanliness
- Alignment recipe
- Wafer surface condition
- Chuck flatness
- Stage calibration
- Probe card condition
- Mechanical repeatability
Therefore, a machine's actual probing performance should be evaluated through testing and calibration rather than relying only on its model number.
UF200R and CP Testing
The UF200R can be integrated into wafer-level electrical testing systems where the prober handles wafer positioning and the tester performs electrical measurements.
A typical CP test configuration includes:
Wafer → Wafer Chuck → Probe Card → Test Interface → ATE
The prober controls the physical positioning of the wafer, while the tester executes the electrical test program.
Depending on the application, the overall system may be used for:
- Continuity testing
- I-V characterization
- C-V measurements
- Parametric testing
- Wafer sort
- Reliability testing
- MEMS testing
- Optical/electrical device characterization
- Engineering evaluation
Published research has also documented the use of an ACCRETECH UF200R with a temperature-control system for wafer-level electrical measurements, demonstrating its suitability for temperature-dependent semiconductor characterization.
Applications of TSK UF200R Probing Machines
The UF200R is not limited to one semiconductor product category.
Semiconductor Production
Automatic wafer probing can be used for production wafer sort where high repeatability and automated wafer handling are required.
MEMS Testing
The UF200R platform supports MEMS applications and can be configured for specialized testing requirements.
Engineering and R&D
The machine can also be used in engineering environments where automated wafer handling and repeatable positioning are valuable.
Specialty Devices
Its configurable architecture makes the platform suitable for non-standard wafer formats and specialized probing requirements.
Temperature-Dependent Testing
With an appropriate thermal chuck or external temperature-control system, the UF200R can support testing across controlled temperature conditions. Published research has used an UF200R for measurements at multiple temperatures.
Important Considerations When Buying a Used UF200R
For buyers considering a used TSK UF200R probing machine, the model number alone is not enough to determine the actual value of the equipment.
Different machines may have different options, operating histories, software configurations, and maintenance conditions.
A professional inspection should cover at least the following areas.
1. Mechanical System
Check:
- X-Y stage movement
- Z-axis movement
- Theta movement
- Mechanical backlash
- Guide systems
- Bearings
- Stage repeatability
Unexpected vibration or positioning errors can directly affect probe contact.
2. Optical System
Inspect:
- Alignment camera
- Lens condition
- Lighting
- Autofocus
- Image quality
- Alignment repeatability
Contaminated or aging optical components can cause repeated alignment failures.
3. Wafer Chuck
Check:
- Chuck flatness
- Vacuum holding performance
- Surface condition
- Vacuum channels
- Temperature-control function, if installed
A damaged or contaminated chuck can produce wafer movement and unstable probe contact.
4. Probe Card Interface
Verify:
- Probe card mounting
- Mechanical alignment
- Probe touchdown
- Overtravel
- Contact repeatability
- Probe card compatibility
5. Wafer Handling System
The robot and wafer-handling mechanism should be tested for:
- Cassette loading
- Wafer pick-up
- Wafer transfer
- Wafer placement
- Sensor operation
- End-effector condition
6. Software and Control Electronics
Older probing equipment can require special attention to control computers, storage devices, interface boards, and software availability.
A proper refurbishment assessment should therefore include both hardware and software rather than simply powering on the machine.
Refurbishment of TSK UF200R Probing Machines
A professionally refurbished UF200R can be an attractive alternative when a new wafer prober exceeds the project's budget or when a production line requires additional capacity.
However, refurbishment should not mean cosmetic cleaning alone.
A professional refurbishment process may include:
- Complete equipment inspection
- Mechanical cleaning
- Vacuum-system inspection
- Chuck inspection
- Optical-system inspection
- Motion-stage verification
- Sensor testing
- Electrical-system inspection
- Software and control-system verification
- Alignment calibration
- Probe-position verification
- Wafer-handling testing
- Continuous operation testing
- Final performance verification
The exact refurbishment scope should be determined from the machine's actual condition.
Common UF200R Maintenance Issues
Like other precision wafer probers, the UF200R requires regular maintenance.
Common issues may include:
- Wafer alignment failure
- Vacuum chuck instability
- X-Y positioning errors
- Z-axis errors
- Optical recognition problems
- Robot transfer errors
- Probe contact instability
- Temperature-control problems
- Communication errors
- Aging electronic components
Regular preventive maintenance can reduce unexpected downtime and maintain probing repeatability.
For used equipment, maintenance history is particularly important because components such as motors, sensors, vacuum parts, optical assemblies, cables, and control electronics may have experienced significant operating hours.
Why Choose a Refurbished UF200R?
A refurbished TSK UF200R probing machine can provide several practical advantages:
Lower Capital Cost
Used equipment generally requires substantially less initial investment than purchasing a new automated wafer prober.
Mature Platform
The UF200R is an established wafer probing platform with applications across production, engineering, and specialized testing environments.
Flexible Applications
The platform can be configured for different wafer sizes and specialized probing applications.
Faster Equipment Deployment
For facilities that need additional wafer probing capacity, a refurbished system may provide a faster route to equipment availability than waiting for a new machine.
Spare Parts and Technical Support
The availability of replacement parts, maintenance expertise, calibration capability, and technical support should be evaluated together with the machine itself.
TSK UF200R Probing Machines: Key Specifications
The following specifications are based primarily on ACCRETECH's published UF200R information:
| Parameter | UF200R |
|---|---|
| Equipment Type | Automated wafer prober |
| Wafer Diameter | 120 / 150 / 200 mm |
| X-Y Speed | Up to 300 mm/s |
| Z Speed | Up to 30 mm/s |
| Rotation | ±5° |
| Wafer Handling | Automated |
| Alignment | Optical alignment |
| Applications | Production, development, MEMS, specialty testing |
| Configuration | Modular / expandable |
Actual machine configuration can vary, particularly for used equipment and systems that have been upgraded or modified. Buyers should verify the exact configuration through serial-number-level documentation and functional testing.
Conclusion
TSK UF200R probing machines remain relevant for semiconductor wafer testing where automated wafer handling, precise positioning, repeatability, and flexible application support are required.
The platform supports 120 mm, 150 mm, and 200 mm wafers and provides automated handling, optical alignment, high-speed X-Y motion, and configurable functions for production and specialized applications.
For buyers evaluating a used or refurbished UF200R, the most important factors are not simply the equipment model or appearance. Mechanical accuracy, chuck condition, optical alignment, wafer handling, software, electronics, probe interface, maintenance history, and actual test performance should all be evaluated.
For semiconductor fabs, OSATs, laboratories, and equipment users seeking cost-effective wafer probing capacity, a professionally inspected and refurbished UF200R can be a practical solution when its configuration and condition match the intended application.
Frequently Asked Questions
What wafer sizes can the TSK UF200R handle?
The UF200R is designed for 120 mm, 150 mm, and 200 mm wafers, corresponding broadly to common 5-inch, 6-inch, and 8-inch applications.
Is the UF200R an automatic wafer prober?
Yes. It is a fully automated wafer prober with automated wafer handling and optical alignment capabilities.
What is the maximum X-Y speed of the UF200R?
The published specification lists an X-Y motion speed of up to 300 mm/s and a Z-axis speed of up to 30 mm/s.
Can a used UF200R be refurbished?
Yes. Used units can be inspected, repaired, calibrated, and performance-tested. The refurbishment scope should be based on the actual condition and configuration of each machine.
Is the UF200R suitable for CP testing?
Yes. Its automated wafer handling, alignment, and probing functions make it suitable for wafer-level testing when properly integrated with the appropriate probe card, test interface, and ATE system.
What should I check before buying a used UF200R?
At minimum, verify wafer handling, alignment accuracy, X-Y-Z movement, chuck vacuum and flatness, optical system condition, probe interface, software, electronics, available options, maintenance history, and actual test performance.
